3. Corrosion resistance: the core components of pump case, rotor and side cover are made of integral anti-corrosion alloy. It can be used under the conditions of organic acid, carbonic acid, nitric acid, sulfuric acid and hydrochloric acid.

Anti-corrosion materials:

A. High grade spheroidal graphite cast steel surface infiltration hardener + Ni plating

B. 316L and super stainless steel materials

C. TA, TC and other series of titanium alloy materials.

D. Cast steel parts + lining engineering plastics.

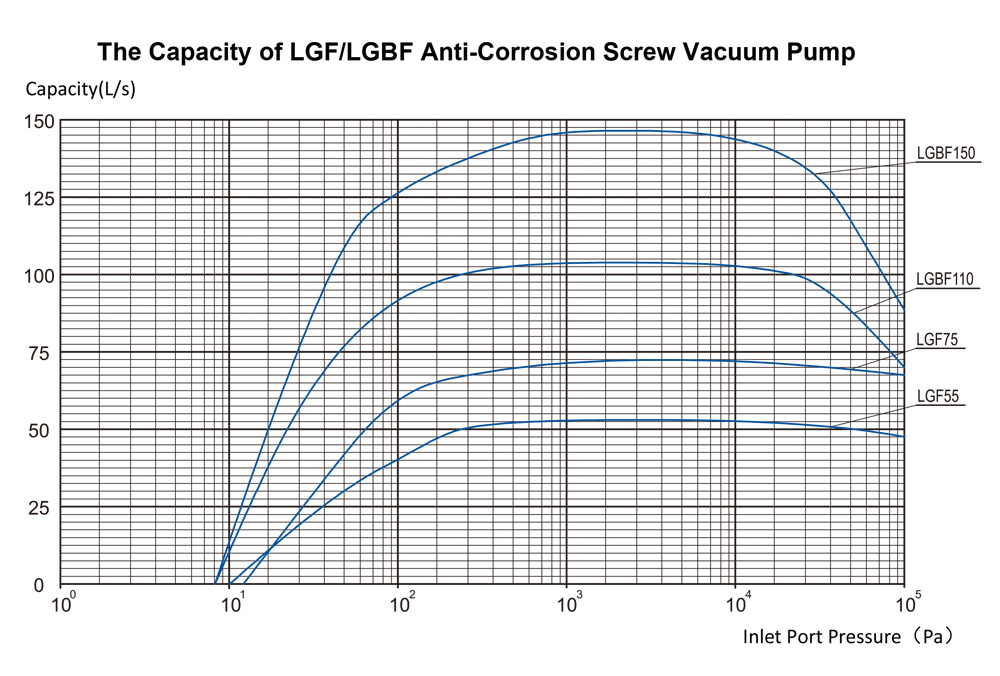

LGF/LGBF Anti-Corrosion Screw Vacuum Pump Performance Specification

Description	LGF55	LGF75	LGF120	LGBF80	LGBF110	LGBF150	LGBF200
Capacity L/s （m³/h）	55 (198)	75 (270)	120 (432)	80 (288)	150 (540)	150 (540)	200 (720)
Ultimate Pressure (Pa)	10	20	20	10	50	10	50
Motor Power (Kw)	5.5	7.5	15	5.5	7.5	15	15/18.5
Speed (R.P.M)	2900	2900	2940	2900	2940	2940	2940
Inlet Port (mm)	80	80	100	80	80	100	100
Outlet Port (mm)	50	50	65	50	50	65	65
Water Filling(L/min)	3	4	6	4	6	6	6
Noise Figure db(A）	75	77	78	71	72	72	75
Weight (Kg)	380	420	880	420	450	800	880

Note:(1) lubricating oil with 100 vacuum pump oil. Oil and grease oil are equipped with pump. (2) the water filling is based on the environment temperature . When the environment temperature is changed, the dosage of the use of circulating water will change. (3)the noise value is measured under indoor, outside noise value is lower than the table 5-10 db (A).

LGBF150 Anti-Corrosion Screw Vacuum Pump
